Çek Valfleri
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| Check valves – General Technical Information | 0.00 | 0.00 | HA0060 |  |
Logical 3 Way Check Valves
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SH1F-A3 | 20 (5) | 250(3626) | C-8-3 / 3/4-16 UNF | HA 5029 |  |

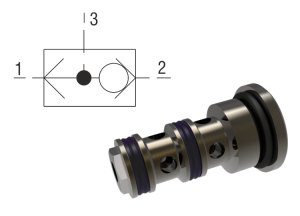

Load Shuttle Valves, Cartridges
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| LV1-043 | 8 (2) | 500 (7252) | G1/8 | HA 5008 | |
| LV2-043 | 8 (2) | 500 (7252) | M12X1,5 | HA 5028 | |
| LV1-063/S | 40(11) | 320(4641) | M22X1,5 | HA 5015 | |
| SQ1F-N3 | 5 (1) | 210 (3046) | 7/16-20 UNF | HA 5075 | |
Load Shuttle Valves, Modular Design
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| LV1-063/M | 40 (11) | 320 (4641) | DN06 (D03) | HA 5030 | |

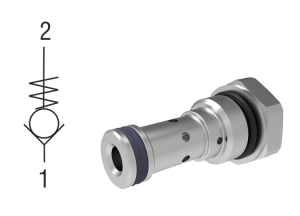

Check Valves, Cartridges
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| VJ01-06/S | 20 (5) | 320(4641) | DN06 | HA 5004 | |
| VJ01-10/S | 80 (21) | 350 (5076) | DN10 (D05) | HA 5307 | |
| SC1F-A2 | 40 (11) | 420 (6092) | C-8-2 / 3/4-16 UNF | HA 5010 | |
| SC1F-A3 | 20(5) | 350 (5076) | C-8-3 / 3/4-16 UNF | HA 5016 | |
| SC1F-B2 | 120 (32) | 420 (6092) | C-10-2 / 7/8-14 UNF | HA 5017 | |
| SC1F-C2 | 150(40) | 350 (5076) | VC-12-2 / 1-1/16-12 UN | HA 5036 | |
| VJ3 | 400(106) | 320(4641) | DN06,08,10,16,202530 | HA 5009 | |
Check Valves, Modular Design and In-Line Mounted
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| VJ01-04/M | 30(8) | 320(4641) | DN04 (D02) | HA 5012 | |
| LV2-043 | 8 (2) | 350(5076) | DN06 (D03) | HA 5018 | |
| LV1-063/S | 40(11) | 350(5076) | D05 (NG10) | HA 5020 | |
Pilot Operated Check Valves Pilot to Open, In-Line Mounted
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| VJS3 | 250 (66) | 320(4641) | DN06,10 | HA 5019 | |
Pilot Operated Check Valves Pilot to Open, Cartridges
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SC5H-BP3 | 60 (16) | 420(6092) | C-10-3S / 7/8-14 UNF | HA 5037 | |
| SC5H-CP3 | 120 (32) | 350(5076) | C-12-3S / 1-1/16-12 UN | HA 5039 | |
| VJS3 | 30(8) | 320(4641) | M18X1,5 /I3 | HA 5045 | |
| VJS3 | 20 (5) | 250(3626) | M24X1,5 | HA 5011 | |
Pilot Operated Check Valves Pilot to Open, Modular Design
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| VJR1-04/M | 20 (5) | 320(4641) | DN04 (D02) | HA 5023 | |
| SC5H-CP3 | 60(16) | 320(4641) | DN06 (D03) | HA 5021 | |
| VJS3 | 140(37) | 350(5076) | DN10 (D05) | HA 5035 | |
Pilot Operated Check Valves Pilot to Open, Modular Design
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| IC5H | 80(21) | 350(5076) | HA 5035 | |
