General Technical Information
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| Directional control valves – General Technical Information | 0.00 | 0.00 | HA0060 |  |

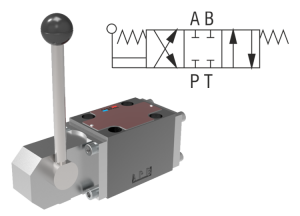

4/2 and 4/3 Directional Control Valves, Manually Operated
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPR3-04 | 30 (8) | 320 (4641) | DN04(D02) | HA 4018 |  |
| RPR3-06 | 80 (21) | 350 (5076) | DN06(D03) | HA 4004 | |
| RPR1-10 | 140 (37) | 350 (5076) | DN10(D05) | HA 4084 | |
4/2 ve 4/3 Hidrolik Uyarılı Yön Kontrol Valfleri
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPH2-06 | 80 (21) | 350 (5076) | DN06 (D03) | HA 4005 | |
| RPH3-06 | 80 (21) | 350 (5076) | DN06 (D03) | HA 4006 | |

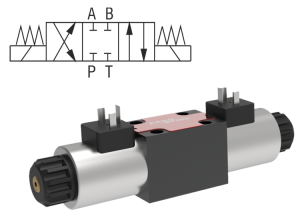

4/2 ve 4/3 Solenoid Uyarılı Yön Kontrol Valfleri
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPR2-04 | 20 (5) | 20 (4641) | DN04 (D02) | HA 4012 | |
| RPR3-04 | 30 (8) | 320 (4641) | DN04 (D02) | HA 4014 | |
| RPR3-06 | 80 (21) | 350 (5076) | DN06 (D03) | HA 4010 | |
| RPR3-06 | 60 (16) | 350 (5076) | DN06 (D03) | HA 4086 | |
| RPR3-06 | 140 (37) | 350 (5076) | DN10 (D05) | HA 4039 | |

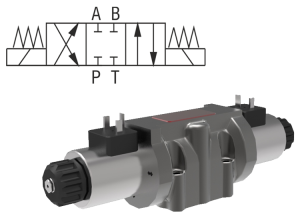

4/2 ve 4/3 Solenoid Uyarılı Yön Kontrol Valfleri with Auxiliary Lever Override
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPER3-06 | 80 (21) | 350 (5076) | DN06 (D03) | HA 4026 | |
4/2 ve 4/3 Solenoid Uyarılı Yön Kontrol Valfleri, Wire Box
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPEW4-06 | 80 (21) | 350 (5076) | DN06 (D03) | HA 4035 | |
| RPEW4-10 | 140 (37) | 350 (5076) | DN10 (D05) | HA 4044 | |
4/2 and 4/3 Solenoid Operated Directional Control Valves, Lightline
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPEL2-06 | 60 (16) | 320 (4641) | DN06 (D03) | HA 4036 | |
| RPEL1-10 | 100 (26) | 250 (3626) | DN10 (D05) | HA 4046 | |
4/2 and 4/3 Solenoid Operated Directional Control Valves, Bankable
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPEK1-03 | 20 (5) | 250 (3626) | DN03 | HA 4027 | |

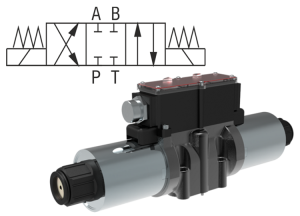

4/2 and 4/3 Solenoid Operated Directional Control Valves with Spool Position Sensor
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RPE3-04*S* | 30 (8) | 320 (4641) | DN04(D02) | HA 4014 | |
| RPE3-06*S* | 80(21) | 350(5076) | DN06(D03) | HA 4010 | |
| RPE3-062x/xS3 | 80(21) | 350(5076) | DN06(D03) | HA 4087 | |
| RPE4-10*S* | 140(37) | 350(5076) | DN10(D05) | HA 4039 | |

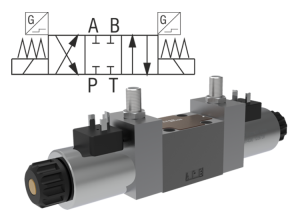

4/2 and 4/3 Directional Control Valves, Internally and Externally Pilot Operated
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| RNEH1-10 | 150 (40) | 320 (4641) | DN10(D05) | HA 4075 | |
| RNEH1-16 | 300(79) | 350(5076) | DN16(D07) | HA 4023 | |
| RNEH1-25 | 600(159) | 320(5076) | DN25(D08) | HA 4024 | |
2/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
| Type | Q max. l/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
|---|---|---|---|---|---|
| SD2E-A2 | 30 (8) | 350 (5076) | C-8-2 / 3/4-16 UNF | HA 4040 | |
| SD2E-B2 | 55 (15) | 350 (5076) | C-10-2 / 7/8-14 UNF | HA 4060 | |
3/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In and Slip-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| PD2E1 | 30 (8) | 80 (1160) | slip-in | HA 4050 | |
| SD2E-A3 | 30 (8) | 350 (5076) | C-8-3/3/4-16 UNF | HA 4041 | |
| SD2E-B3 | 60(16) | 350 (5076) | C-10-3/7/8-14 UNF | HA 4084 | |
4/2 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
| Type | Q max. l/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
|---|---|---|---|---|---|
| SD2E-A4 | 30 (8) | 350 (5076) | C-8-4 / 3/4-16 UNF | HA 4042 | |
| SD2E-B4 | 50 (13) | 350 (5076) | C-10-4 / 7/8-14 UNF | HA 4062 | |
4/3 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SD2E-A4/H3 | 30 (8) | 350 (5076) | C-8-4 / 3/4-16 UNF | HA 4097 | |
4/3 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| ROE3-062S2 | 63 (17) | 250 (3626) | M22X1,5 | HA 4022 | |
| SD3E-A2 | 30(8) | 420(6092) | C-8-2 / 3/4-16 UNF | HA 4043 | |
| SD3E-B2 | 75(20) | 420(6092) | C-10-2 / 7/8-14 UNF | HA 4063 | |
| SD3E-C2 | 150(40) | 350(5076) | VC-12-2 / 1-1/16-12 UN | HA 4039 | |
4/3 Directional Valves, Solenoid Operated, Spool Type, Screw-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| ROE3-062S2M | 25 (7) | 250 (3626) | DN04 (D02), DN06 (D03) | HA 4072 | |
2/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Screw-In Style
| Type | Q max. l/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
|---|---|---|---|---|---|
| ROE3-042S5(S6) | 25 (7) | 250 (3626) | M22x1,5 | HA 4055 | |
| SD1E-A2 | 30 (8) | 350 (5076) | C-8-2 / 3/4-16 UNF | HA 4070 | |
| SD3E-C2*S5(S6) | 150 (40) | 350 (5076) | VC12-2 / 1-1/16-12 UN | HA 4083 | |

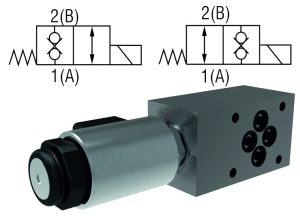

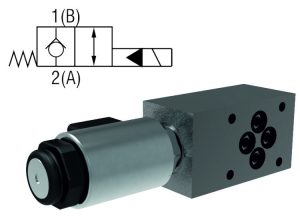

2/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Modular Design
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| ROE3-042S5(S6)M | 25 (7) | 250 (3626) | DN04 (D02), DN06 (D03) | HA 4073 | |
3/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Screw-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SD1E-A3 | 30 (8) | 350 (5076) | C-8-3 / 3/4-16 UNF | HA 4071 | |
3/2 Directional Valves, Solenoid Operated, Poppet Type, Blocking, Screw-In Style
| Type | Q max. I/min (GPM) | P max. bar (PSI) | Connection | Data sheet | Download |
| SD2H-LA3 | 40 (11) | 320(4641) | M24X1.5 | HA 4080 | |
