Off-line Filters
With flow regulator, Qnom up to 6 l/min, pmax 320 bar
| Type | Q max. l/min (GPM) | Q nom. l/min (GPM) | P max. bar (PSI) | Data sheet | Download |
|---|---|---|---|---|---|

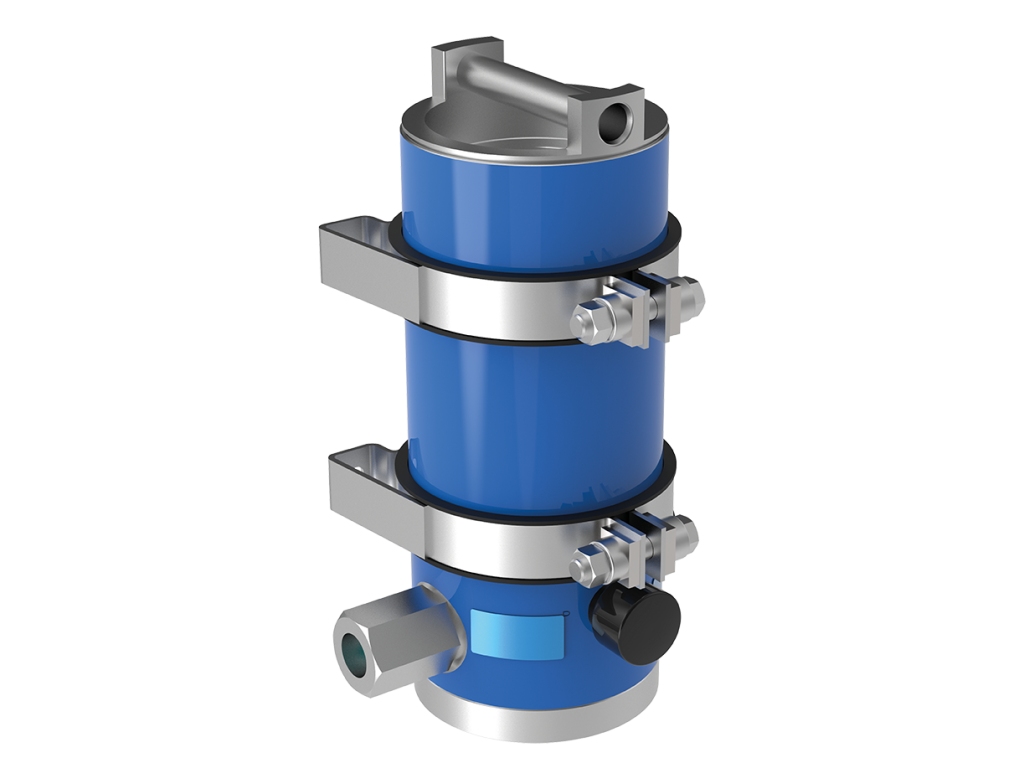

| FNS1 040 | 6 (2) | 2 (0.5) | 320 (4641) | FNS040_8025 |  |
| FNS 060 | 6 (2) | 4 (1.1) | 320 (4641) | FNS060_8020 |  |
Without flow regulator, Qmax up to 650l/min, pmax up to 12 bar
| Type | Q max. l/min (GPM) | Q nom. l/min (GPM) | P max. bar (PSI) | Data sheet | Download |
|---|---|---|---|---|---|

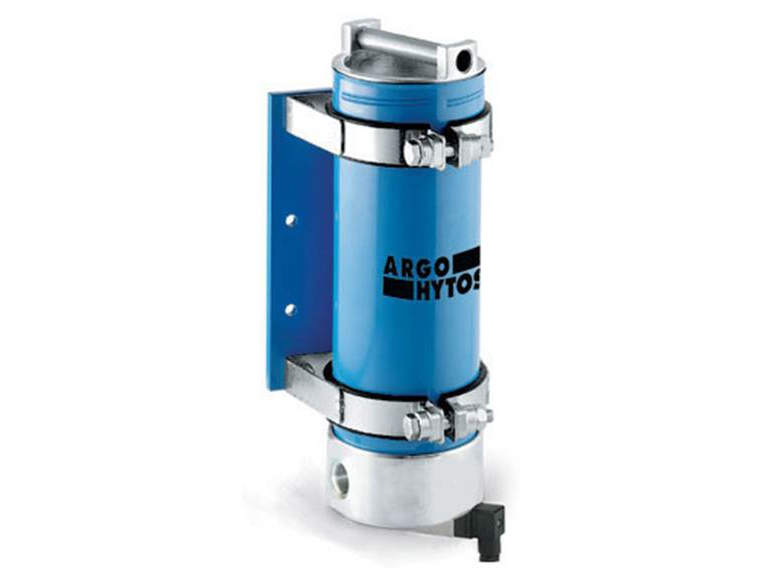

| FN1 040 | 60 (16) | 40 (10.6) | 12 (174) | FN1 040_8005 | |
| FN 060 | 115 (30) | 60 (15.9) | 12 (174) | FN060_8010 | |
| FN 300 | 650 (172) | 300 (79.3) | 10 (145) | FN300_8010 | |
