Connecting Plates & Manifolds
Connecting Plates & Manifolds
Manifolds connect individual sections of hydraulic circuits and ensure specific control functions via valves. Standardized designs are characterized by connection flexibility. Specific designs for individual applications range from the economical to technically advanced solutions. Manifolds are made of aluminum alloy, gray cast iron or steel.

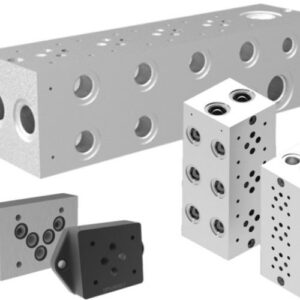

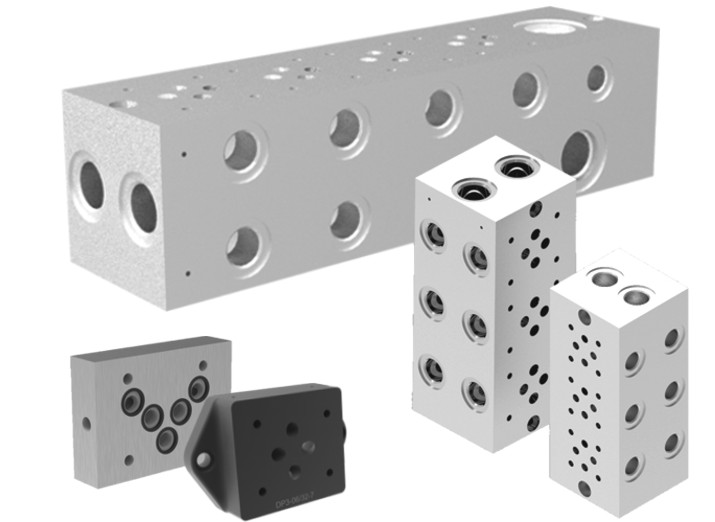

Sub-Plates for Valves with a Body and Modular Valves
| Type | Data sheet | Download |
|---|---|---|
| PD04 – Serial Plates with Side Ports for ISO 4401-02 valves | HA 0005 |   |
| DR1-04 – Serial Plates | HA 0017 | |
| PD06 – Serial Plates with Side Ports for ISO 4401-03 valves | HA 0006 | |
| DR2-06 – Serial Plates | HA 0026 | |
| PD10 – Serial Plates with Side Ports for ISO 4401-05 valves | HA 0008 | |
| DK1-04 (06, 10) – Blanking Plates | HA 0003 | |
| DM04 (06, 10) Modular Measuring and Functional Plates | HA 0024 | |
| DA-06/04, 10/06 – Adaptor Plate | HA 0027 | |
| DP-04 (06, 10) – Subplates | HA 0002 | |

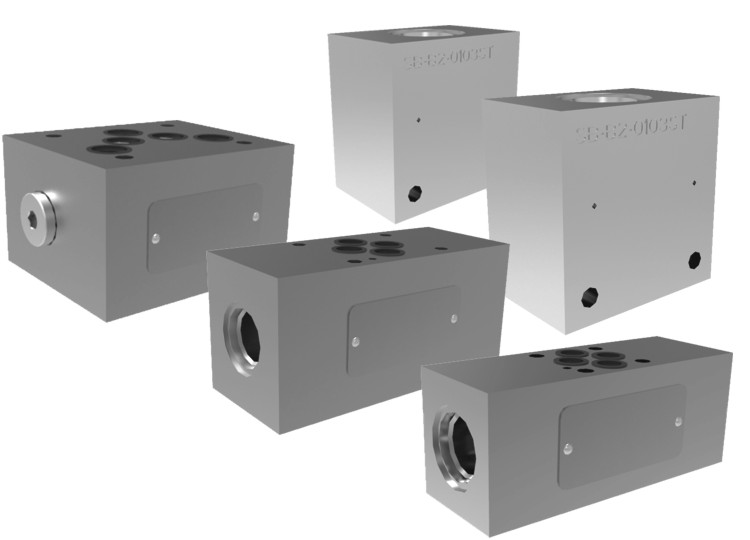

Bodies for Screw-in Cartridge Valves
| Type | Data sheet | Download |
|---|---|---|
| SB – In-Line Bodies for Screw-In Cartridge Valves | HA 0018 | |
| SB-04(06,10) – Sandwich Plates for Valves | HA 0028 | |
SA4 Power Pack Base Plates with Built-in Pressure Relief Valve
| Type | Data sheet | Download |
|---|---|---|
| DP6 – Base Manifold with Pressure Relief Valve | HA 0012 | |
| ZB06 – Base Plate with Pressure Relief Valve for Serial Plate Assemblies | HA 0010 | |
| ZB10 – Base Plate with Pressure Relief Valve for Serial Plates Assemblies | HA 0021 | |
